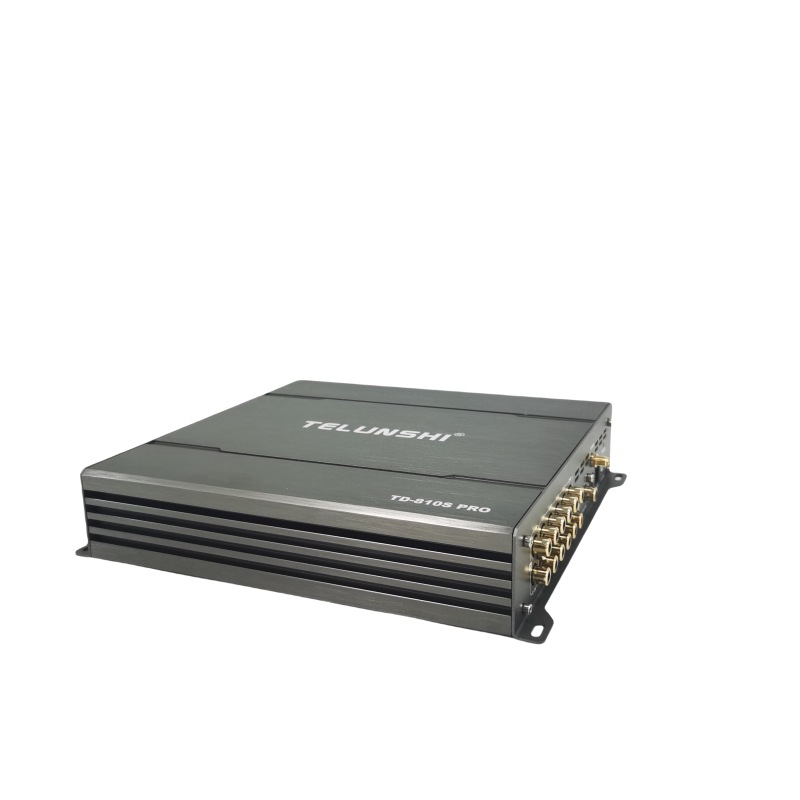

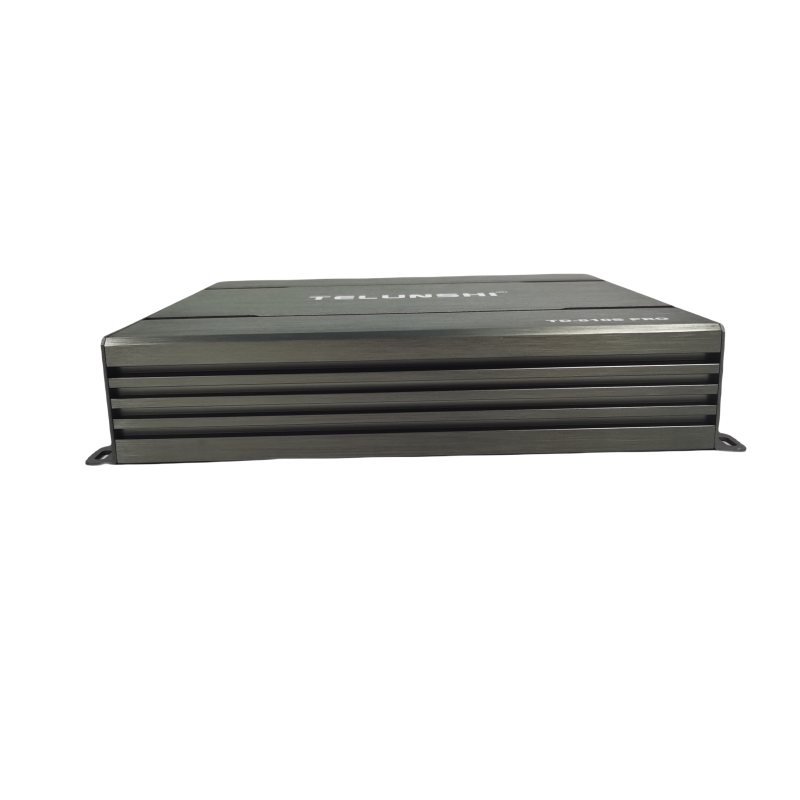

Class AB Amplifier Audio Processor: A 10 - Channel Professional - Grade High - Fidelity Audio Marvel with DSP
Product Features
1. Powerful Power Output: The peak power can reach 4x50W + 4x120W + 2x600W, and the rated power is 4X25W@4Ω + 4x60W@4Ω + 2x150W@4Ω. In bridge mode, it can achieve 2x300W@2Ω, that is, 600W of powerful power. It can meet the volume and sound - quality power requirements of different scenarios, and is competent for sound reinforcement in both small gatherings and large - space venues.
2. Abundant Channels and Precise EQ Adjustment: With 10 channels, it can handle complex audio signal processing. Coupled with a 31 - band EQ, it can finely adjust the sound according to different audio contents and personal preferences, meeting diverse audio - processing needs and precisely shaping the ideal sound effect.

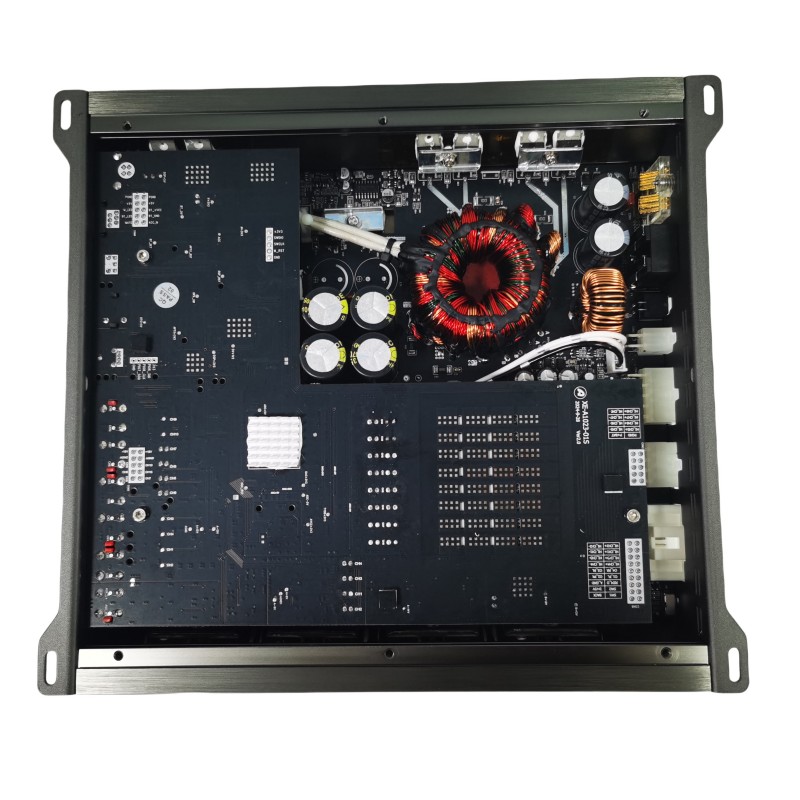

3. High - Quality Decoding Chips: It adopts the American ADI1452 + TIPCM3168 decoding and processing chips, ensuring high - quality audio decoding, restoring the details and authenticity of the sound, and bringing a high - quality audio experience.

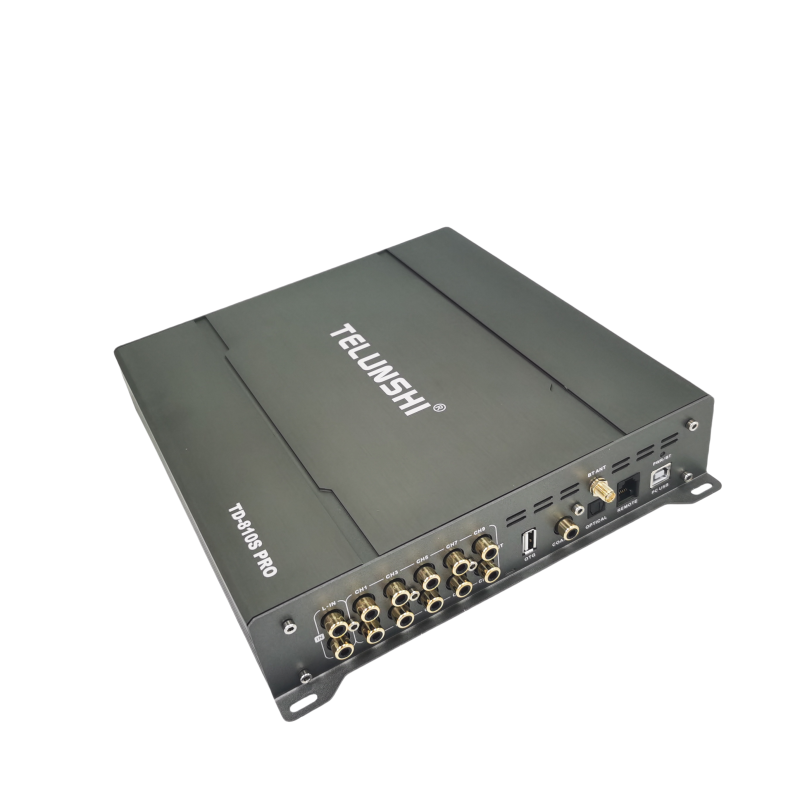

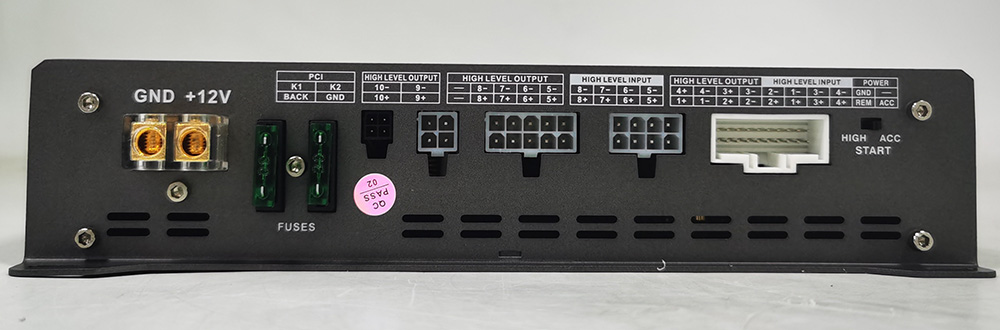

4. Wide Compatibility: It supports an impedance of 2Ω - 4Ω and can be used with a variety of speakers of different specifications. The operating voltage range is DC 10 - 15V, adapting to different power - supply environments. It has rich input methods, covering 8 - channel high - level, 2 - channel low - level, OTG, Bluetooth 5.1, optical fiber, coaxial, digital broadcasting, etc., making it convenient to connect various audio - source devices.
5. Flexible Tuning and Convenient Control: It provides multiple tuning methods such as Windows mixer, Android mobile APP, and Apple APP. Whether operating on a computer or through mobile control on a phone, you can easily adjust the audio parameters to meet the tuning needs in different scenarios.
6. Excellent Audio Performance: The frequency - response range is 20Hz - 20KHZ, covering the entire audio - frequency range audible to the human ear. It can perfectly interpret from deep bass to crisp treble. The signal - to - noise ratio is >98dB, with high sound purity and minimal noise interference, capable of presenting clear and high - quality audio effects.
7. Advanced Bluetooth Technology: It adopts Bluetooth 5.0 technology, featuring faster transmission speed, more stable connection, and stronger anti - interference ability, facilitating wireless connection to Bluetooth devices for audio playback.

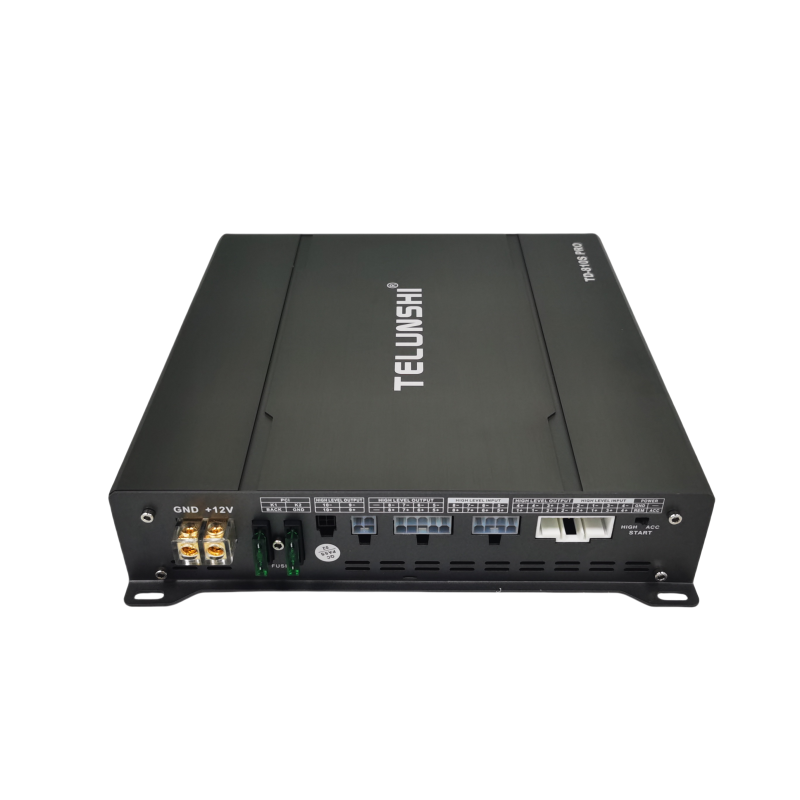

8. Multiple Startup Modes: It supports two startup modes, ACC and high - level, providing users with more choices and flexibility, and facilitating convenient startup in different device systems.
We are currently conducting a global investment promotion campaign and sincerely invite people of vision from all over the world to become our agents. No matter where you are in the world, as long as you are passionate about the audio market and have certain market channels and sales capabilities, we warmly welcome your participation. We will provide our partners with all - round support, including high - quality product supply, professional technical training, perfect after - sales service, and strong market - promotion support. We look forward to working with you to create a brilliant future in the audio industry and share the wealth feast.
0102030405060708091011121314151617
Product Parameter
| Net Weight of the Product | 3.11KG |

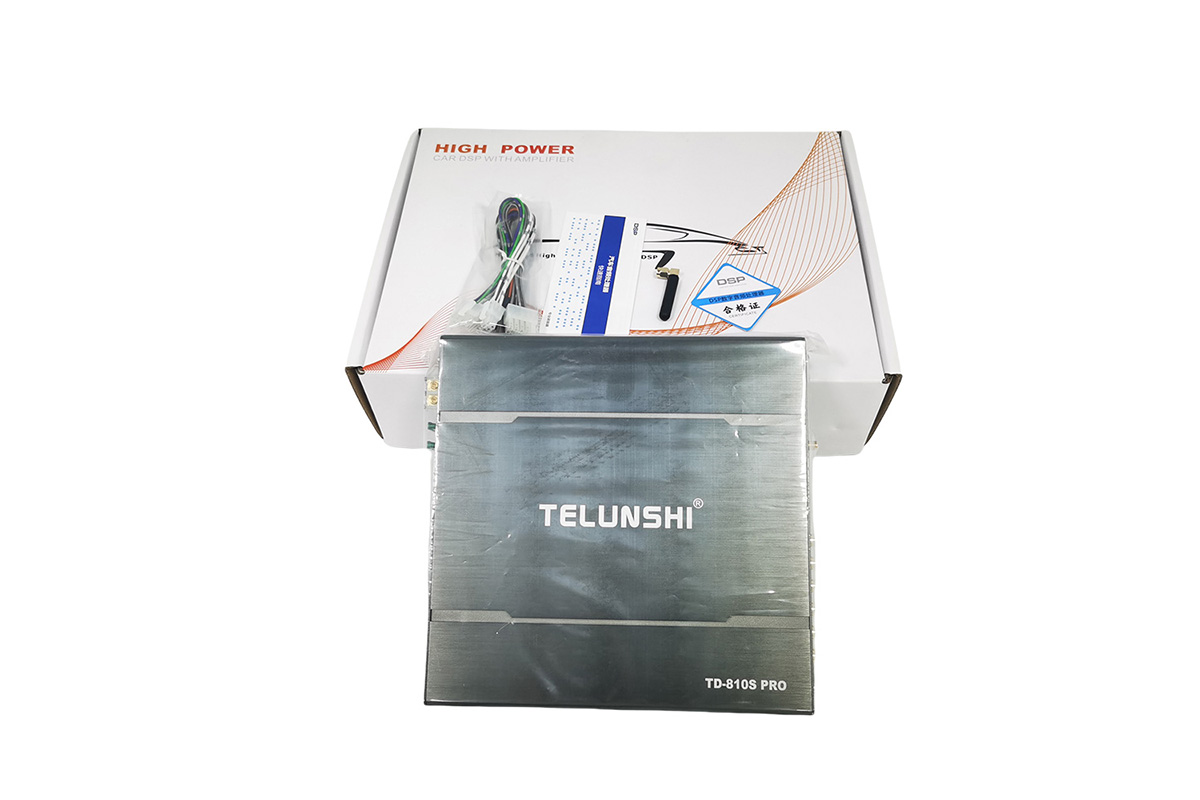

| Product + Accessories Weight | 3.19KG |

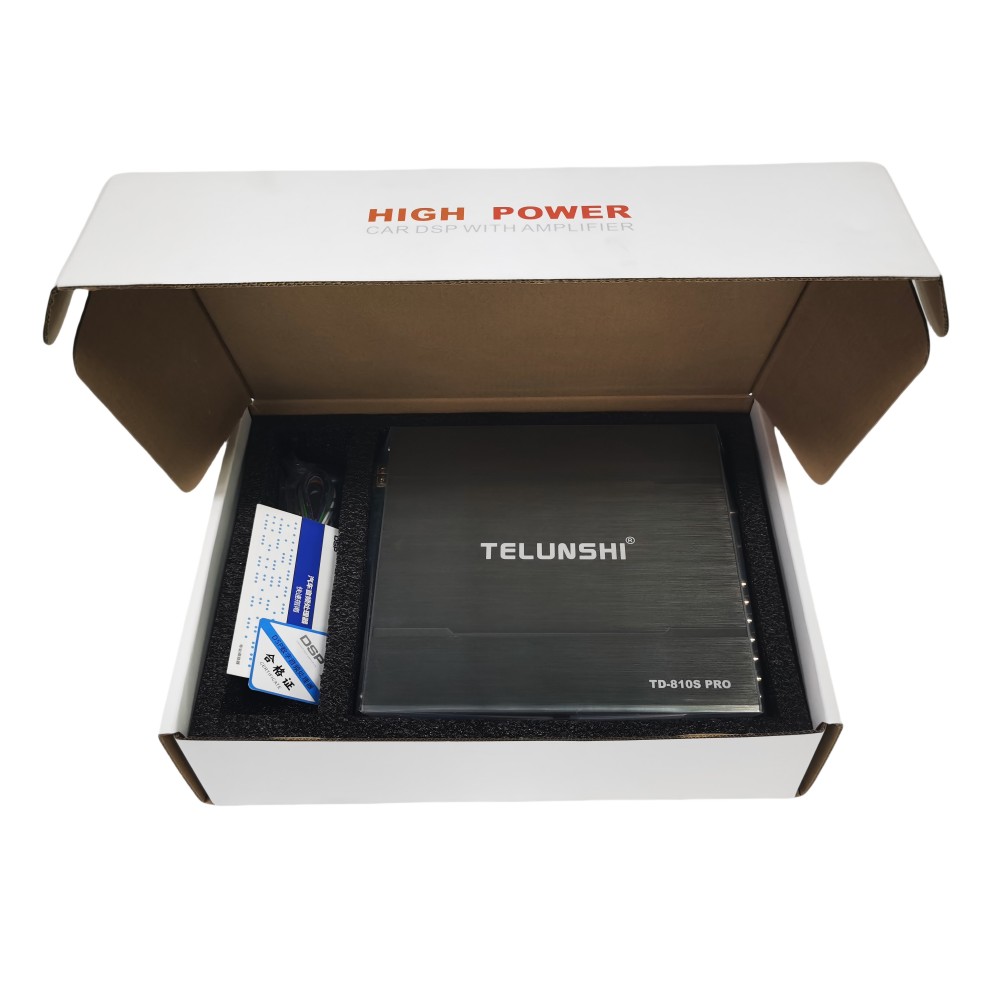

| Gross Weight of the Color Box | 3.63KG |

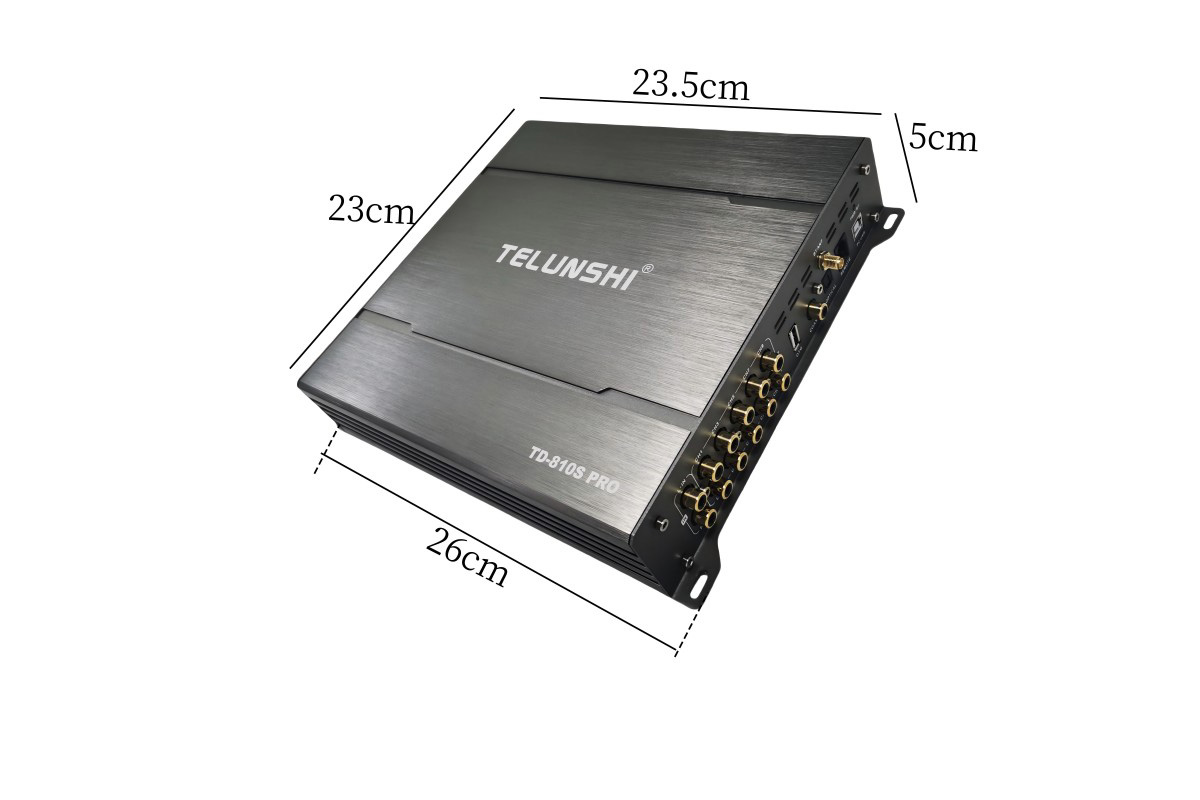

| Product Dimensions | 23.5 (26 when including mounting or fixing feet) * 23 * 5cm |
| Color Box Dimensions | 39 * 27 * 10cm |

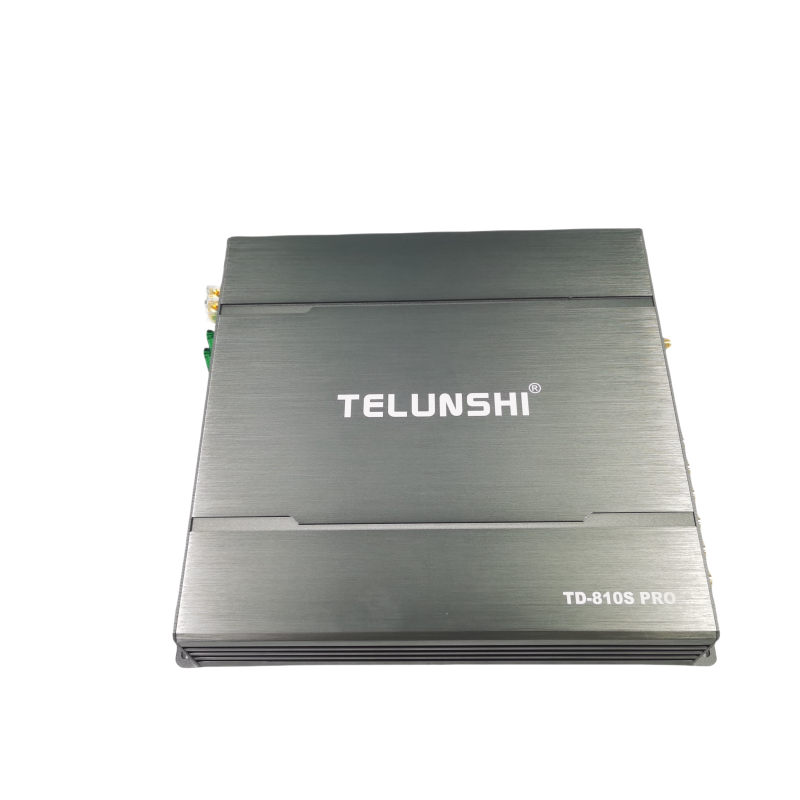

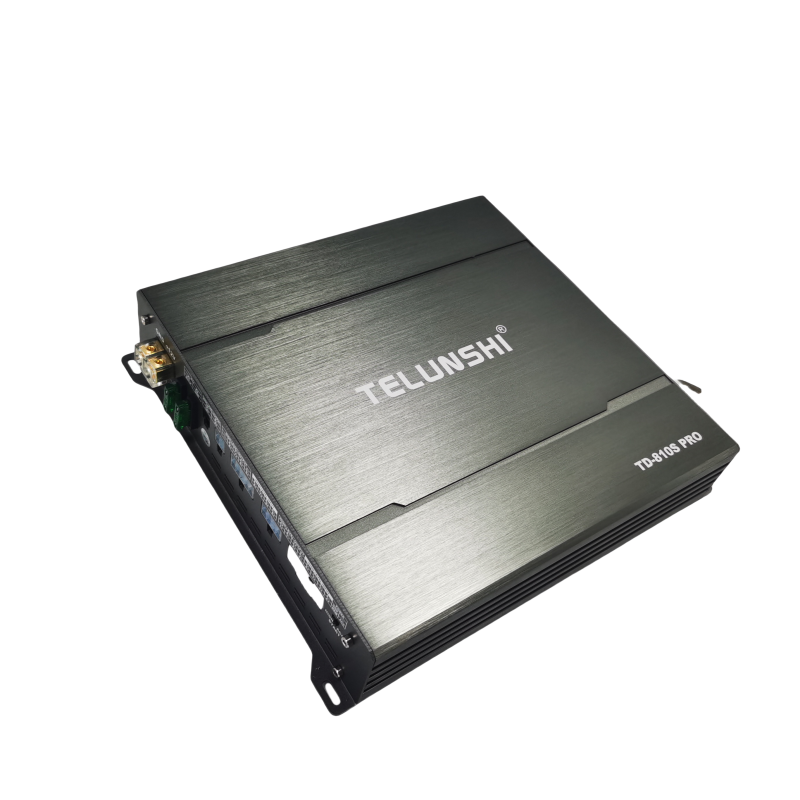

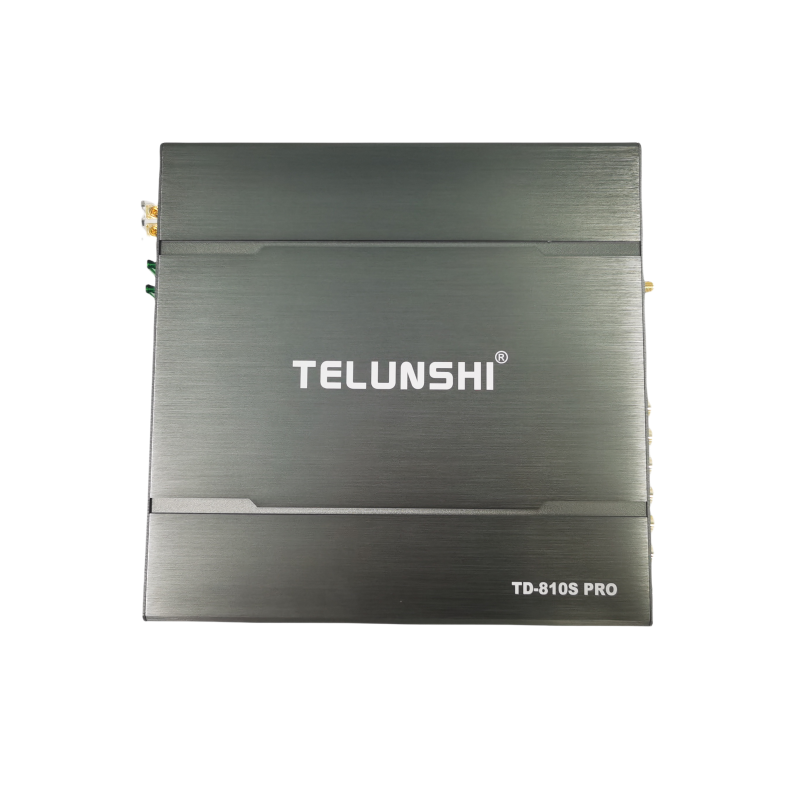

| Model | TD - 810S PRO |
| Channels | 10 |
| EQ | 31 - band EQ |
| Amplifier Type | Class AB |
| Peak Power | 4x50W + 4x120W + 2x600W |
| Rated Power | 4X25W@4Ω + 4x60W@4Ω + 2x150W@4Ω (2x300W@2Ω, 600W in bridge mode) |
| Decoding and Processing Chips | American ADI1452 + TIPCM3168 |
| Impedance | 2Ω - 4Ω |
| Operating Voltage | DC 10 - 15V |
| Tuning Methods | Windows Mixer / Android Mobile APP / Apple APP |

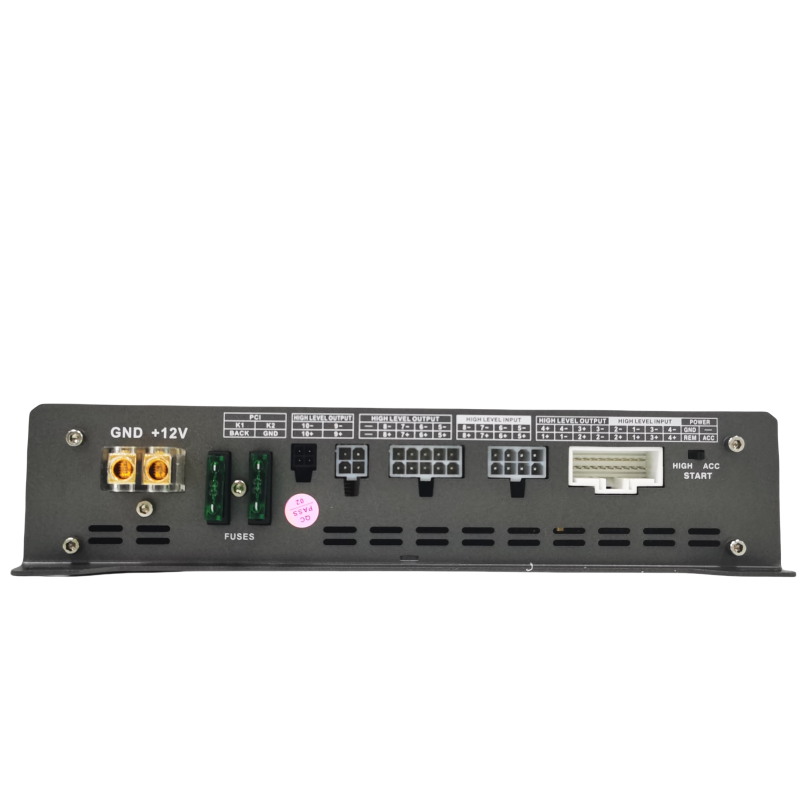

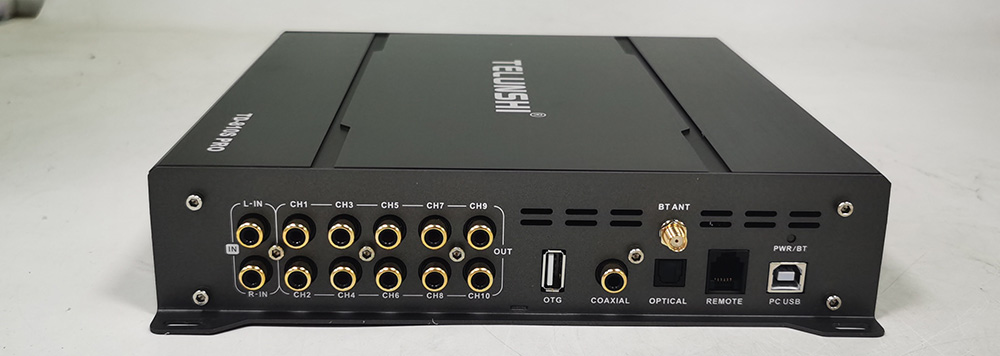

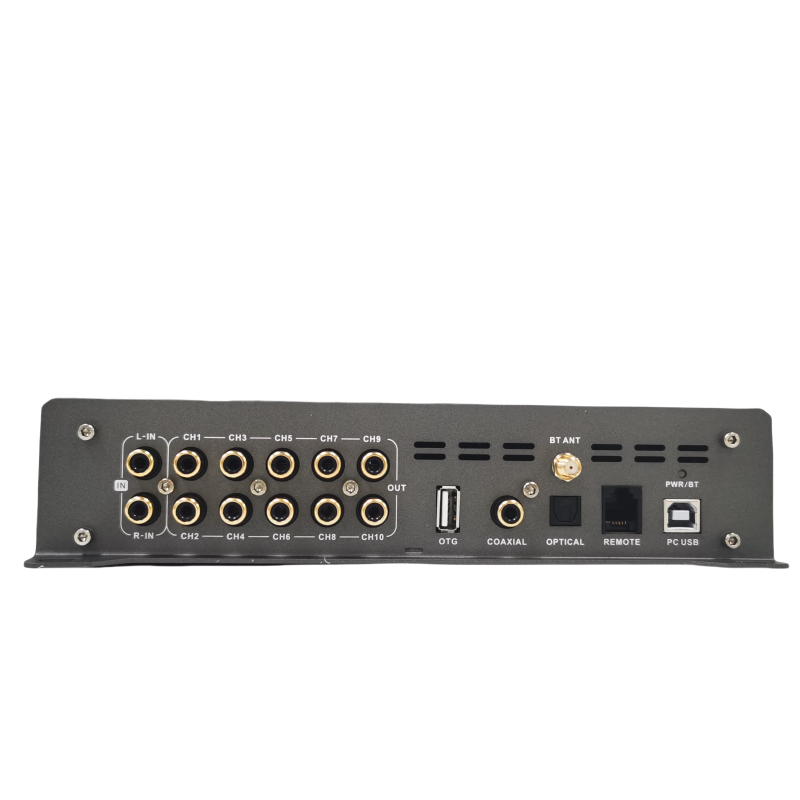

| Input Methods | 8 - channel high - level / 2 - channel low - level / OTG / Bluetooth 5.1 / Optical Fiber / Coaxial / Digital Broadcasting |
| Output Methods | 10 - channel high - level / 10 - channel low - level |
| Frequency Response Range | 20Hz - 20KHZ |
| Signal - to - Noise Ratio | >98dB |
| Bluetooth | Bluetooth 5.0 |
| Startup Methods | ACC / High - level |
| Product Dimensions | 235mm(L) * 230mm(W) * 50mm(H) |
