Car Power Amplifier
01
Source factory's high-power single-channel/four-channel aluminum alloy automotive power amplifier
Product Advantage

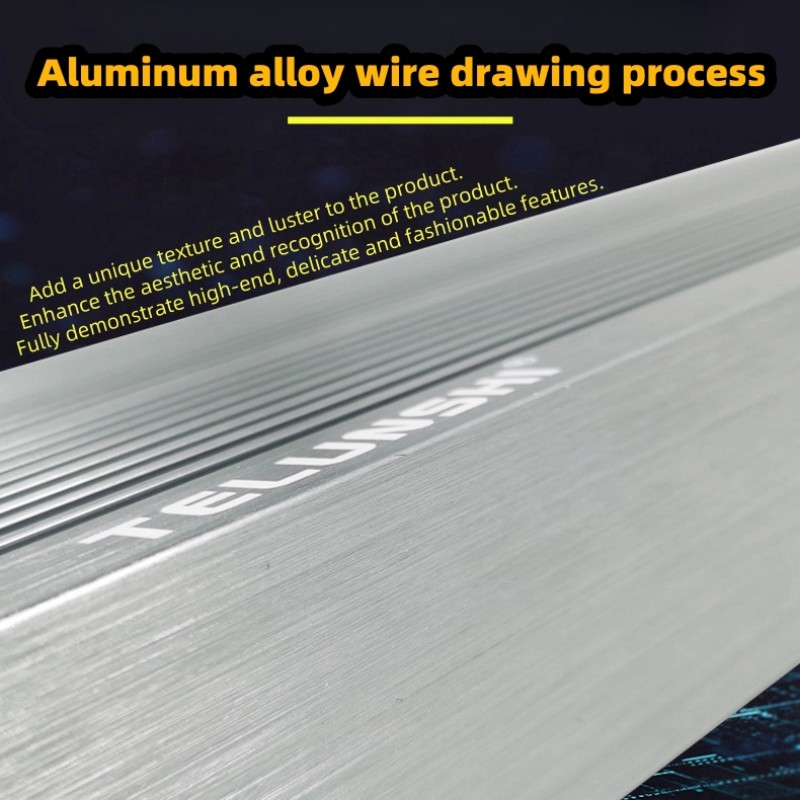

The aluminum alloy wire drawing process has many advantages, mainly in the following aspects:
Appearance
Unique Visual Effect: It can form delicate, uniform and regular filamentous patterns on the surface of the aluminum alloy, adding a unique texture and luster to the product. This fully showcases a sense of high-end, refinement and fashion, enhancing the aesthetic and distinctiveness of the product.
Rich Design Options: By adjusting the parameters of the wire drawing process, such as wire drawing speed, force, angle, etc., patterns with different depths, widths and densities can be achieved. It can also be combined with other surface treatment processes, such as anodizing and electroplating, to create a wide variety of appearance effects, meeting the design requirements of different products.
Performance
Enhanced Abrasion Resistance: The tiny concave and convex structures formed during the wire drawing process increase the surface friction coefficient, making the aluminum alloy surface more wear-resistant. It is not easily scratched or worn during daily use, effectively extending the product's service life.
Improved Corrosion Resistance: The wire drawing process makes the oxide film on the aluminum alloy surface more compact. This oxide film can prevent the contact between external corrosive media and the aluminum alloy substrate, thereby improving its corrosion resistance and enabling it to maintain good stability in harsh environments such as humidity, acids and alkalis.
Retention of Metal Properties: While forming beautiful textures, the wire drawing process basically does not change the excellent properties of aluminum alloy itself, such as being lightweight, high-strength and easy to process. This enables it to still maintain its advantages in fields with high material performance requirements, such as aerospace, automotive manufacturing, and electronic equipment.
Environmental Protection
No Harmful Substances Emission: During the processing, there is no need to use chemical agents or generate harmful substances, which is friendly to the environment and the health of operators.
Recyclability of Materials: Aluminum alloy itself has good recycling value. After the end of the service life of the wire-drawn aluminum alloy products, they can still be easily recycled, meeting the requirements of environmental protection and sustainable development.
Product Parameter
| MODEL | T-600.1 | T-1200.1 | T-1800.1 |
| Supply Voltage | 11~15V DC | 11~15V DC | 11~15V DC |
| Power Output 4 Ohm | 200Wx1 | 500Wx1 | 700Wx1 |
| Power Output 2 Ohm | 400Wx1 | 800Wx1 | 1000Wx1 |
| Power Output 1 Ohm | 600Wx1 | 1200Wx1 | 1500Wx1 |
| Frequency Response | 17Hz~180Hz(-3dB) | 17Hz~180Hz(-3dB) | 17Hz~180Hz(-3dB) |
| Signal Noise Ratio | 90dB | 90dB | 90dB |
| Input lmpedance | 20K Ohm | 20K Ohm | 20K Ohm |
| Input Sensitivity | 6V~0.1V | 6V~0.1V | 6V~0.1V |
| T.H.D. | <0.05% | <0.05% | <0.05% |
| Bass Freq. | 30Hz-80Hz | 30Hz-80Hz | 30Hz-80Hz |
| Low Pass Freq. | 40Hz-180Hz | 40Hz-180Hz | 40Hz-180Hz |
| Subsonic Freq. | 0-50Hz | 0-50Hz | 0-50Hz |
| Bass Boost | 0~12dB | 0~12dB | 0~12dB |
| MODEL | T-2500.1 | T-100.4 |
| Supply VoltagePower | 11~15V DC | 11~15V DC |
| Power Output 4 Ohm | 1000Wx1 | 100Wx4 |
| Power Output 2 Ohm | 1500Wx1 | 150Wx4 |
| Power Output 1 Ohm | 2000Wx1 | - |
| Bridge Output 4 Ohm | - | 280Wx2 |
| Frequency Response | 17Hz~180Hz(-3dB) | 17Hz~20KHz(-3dB) |
| Signal Noise Ratio | 90dB | 90dB |
| Input lmpedance | 20K Ohm | 20K Ohm |
| Input Sensitivity | 6V~0.1V | 6V~0.2V |
| T.H.D. | <0.05% | <0.05% |
| Bass Freq. | 30Hz-80Hz | - |
| Low Pass Freq. | 40Hz-180HZ | 40Hz-500Hz |
| How Pass Freq. | - | 40Hz-2KHz |
| Subsonic Freq. | 0-50Hz | |
| Bass Boost | 0~12dB | 0~12dB |
