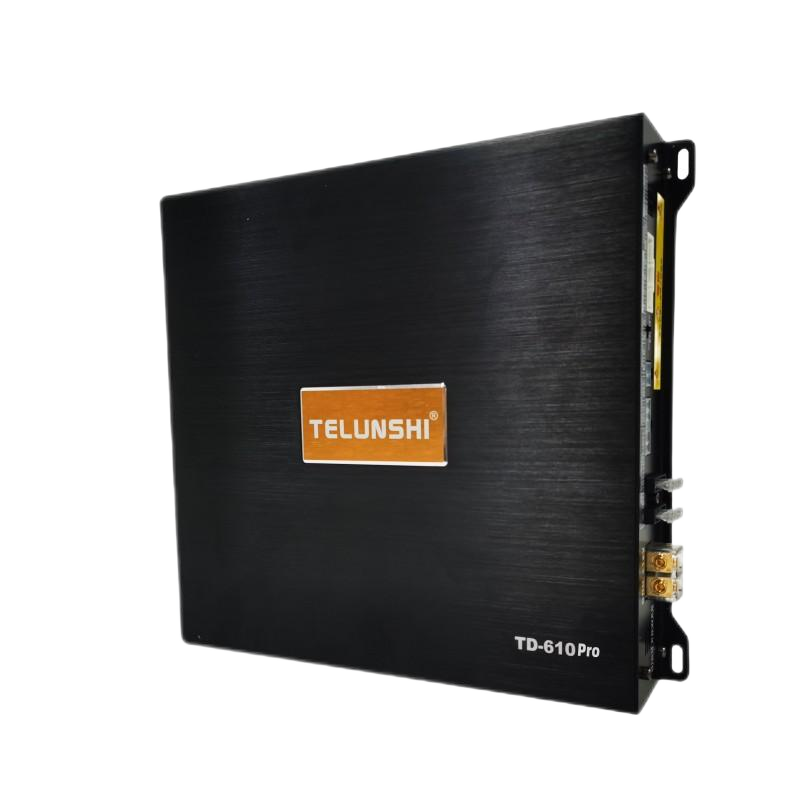

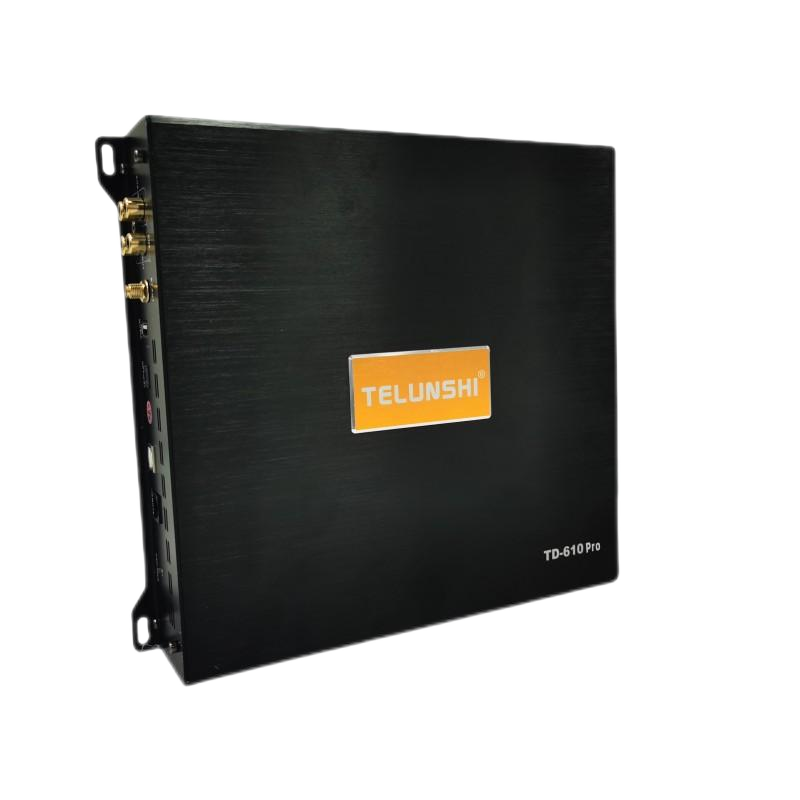

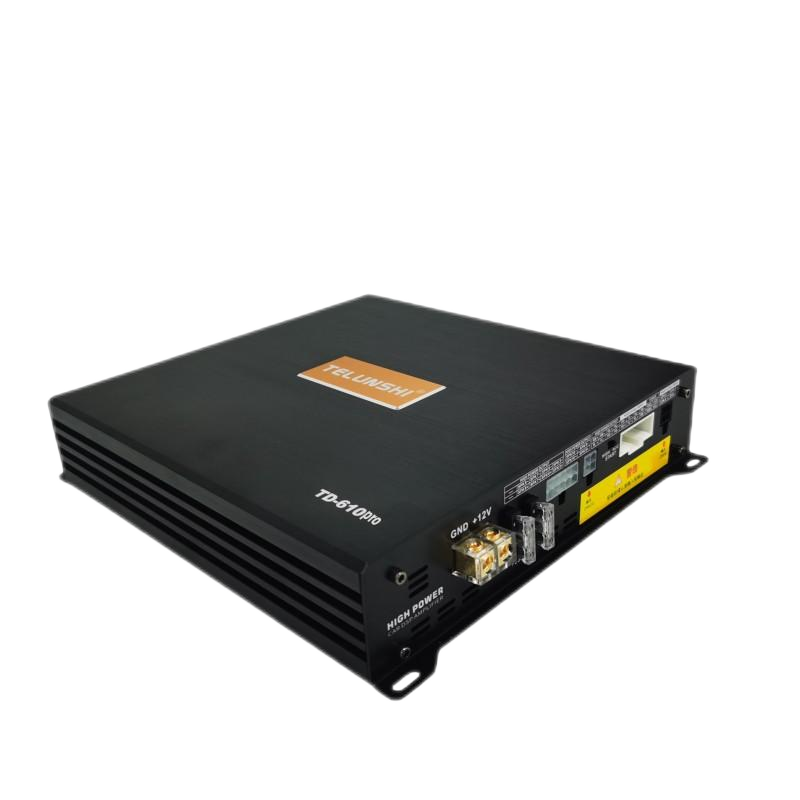

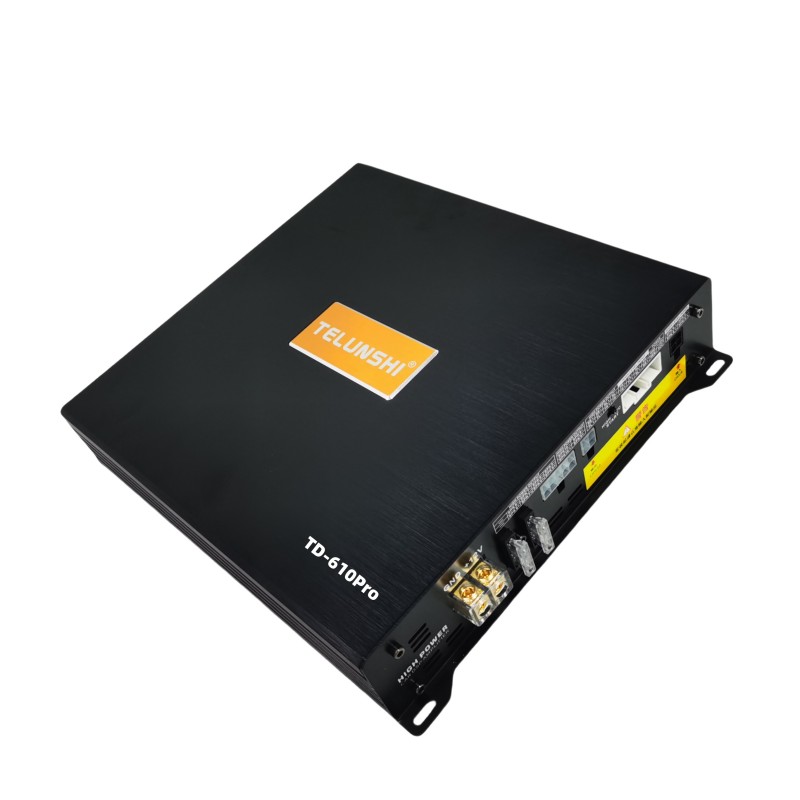

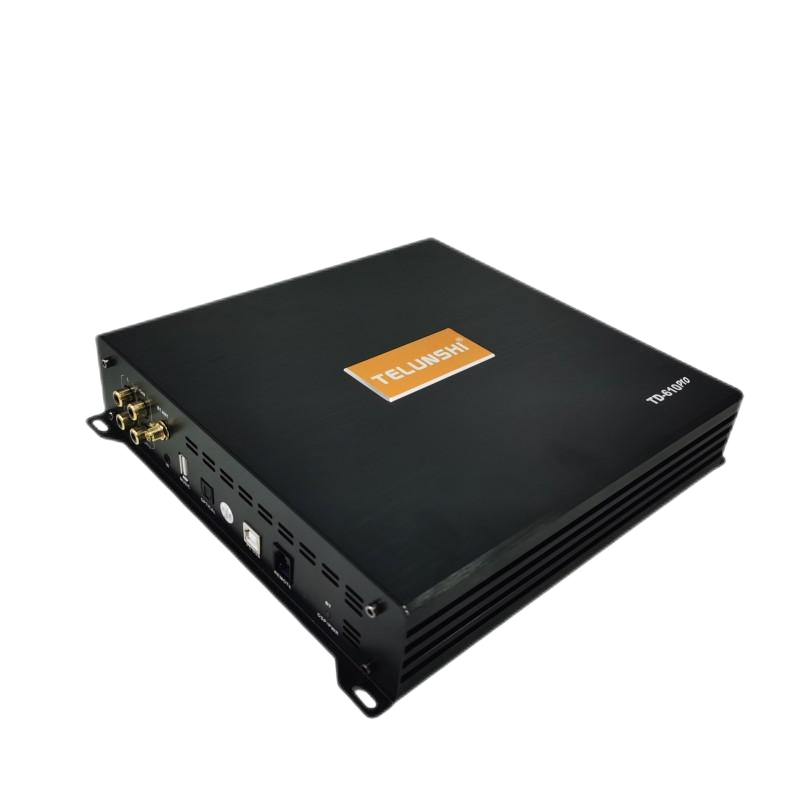

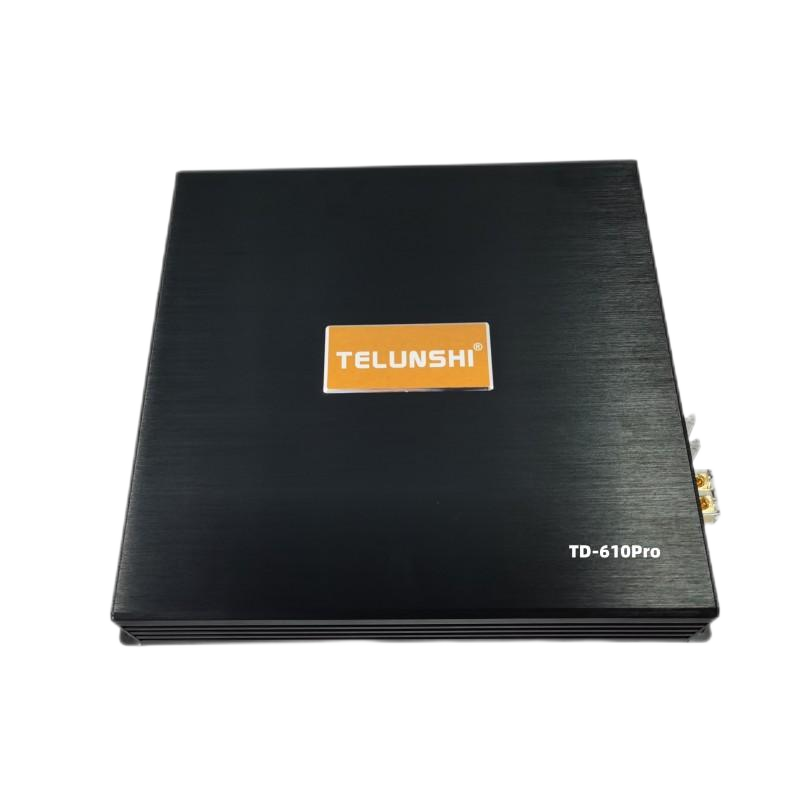

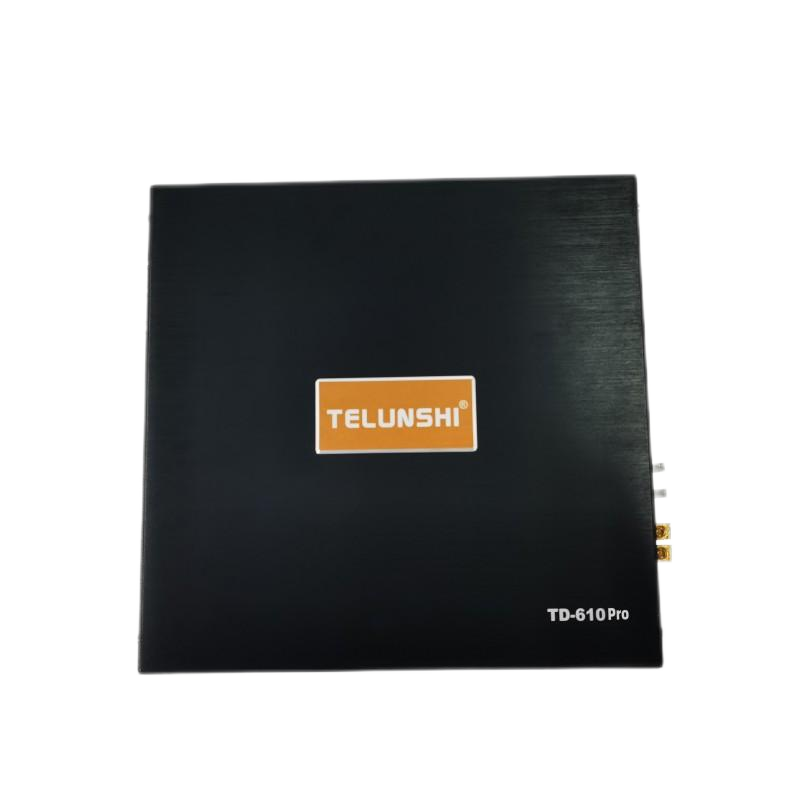

TD - 610 PRO Car Amplifier DSP: 10 - Channel High - Power In - car Audio Marvel
Product Features
I. Excellent Performance, Stunning Sound
(1) Multiple Channels, Stereo Sound
The TD - 610 PRO is equipped with 10 channels, which can precisely drive the front and rear sound fields as well as the sub - woofer unit. Wherever you are in the car, you can be surrounded by stereo sound and feel the charm of music.
(2) Powerful Power, Suitable for Various Music Styles
The peak power of this amplifier reaches 4x50W + 4x120W, and the rated power is 4X25W + 4x60W. Whether it is classical music or rock music, it can be perfectly interpreted, bringing a stunning sound effect.
(3) Wide Impedance Range, Easy to Match
It supports an impedance range of 2Ω - 4Ω and can be matched with most car speakers on the market, easily upgrading the sound quality of your car.
II. Professional Audio Processing, Pure Sound Quality Restoration

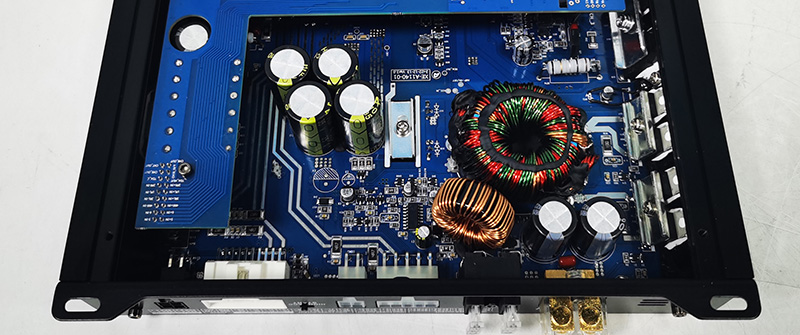

(1) Top - level Chips, Precise Analysis
It adopts the American ADI1452 + TI PCM3168 decoding chips, which can efficiently analyze audio signals and accurately restore musical details.
III. Convenient Connection and Control, Worry - free Music Enjoyment

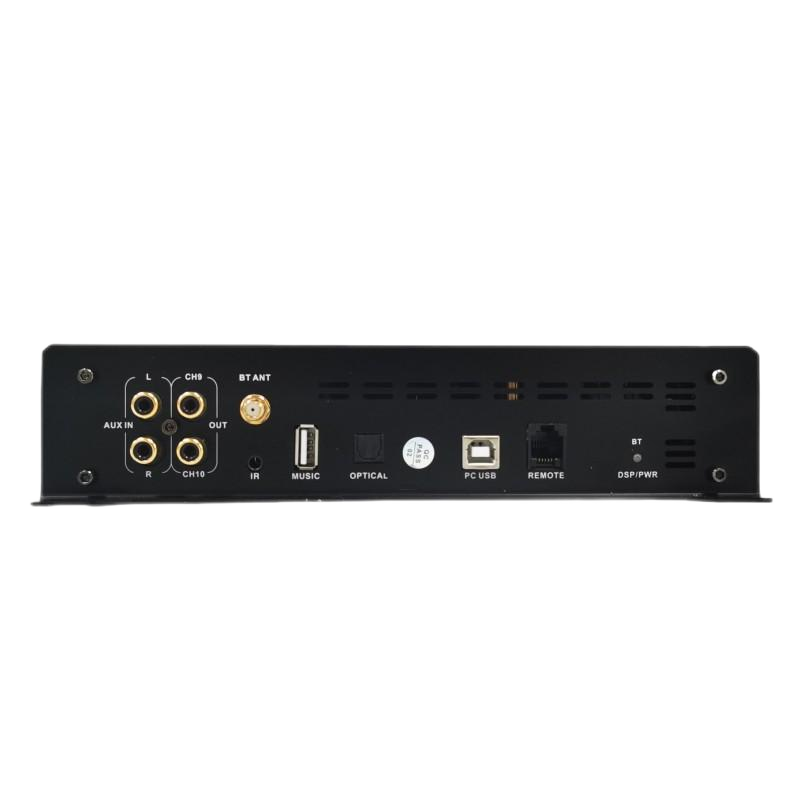

(1) Abundant Interfaces, Flexible Connection

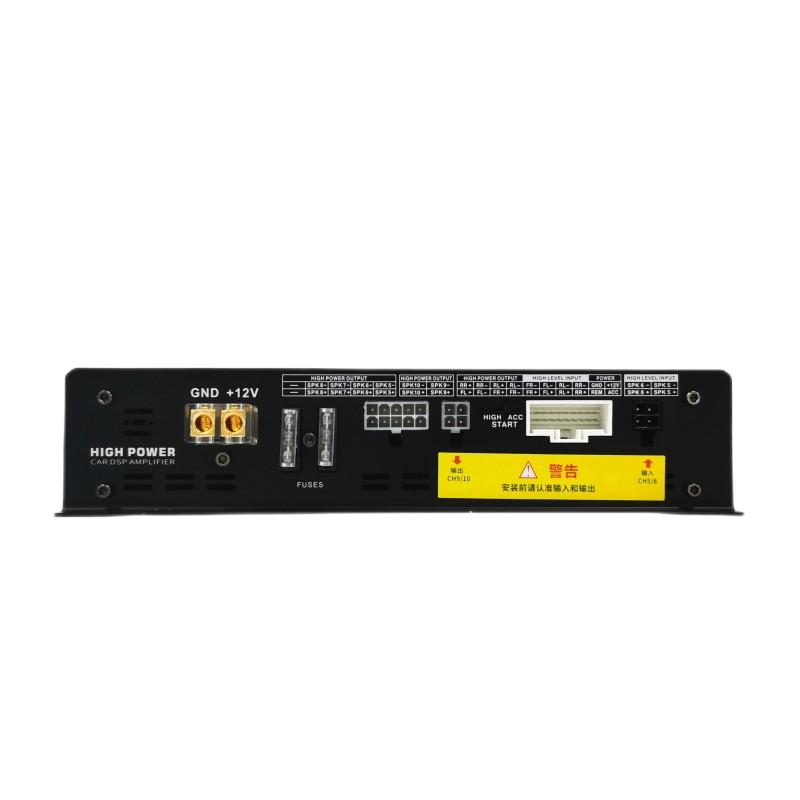

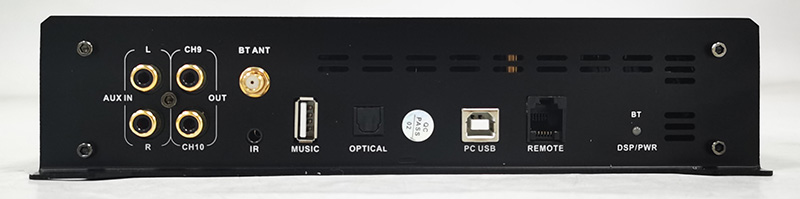

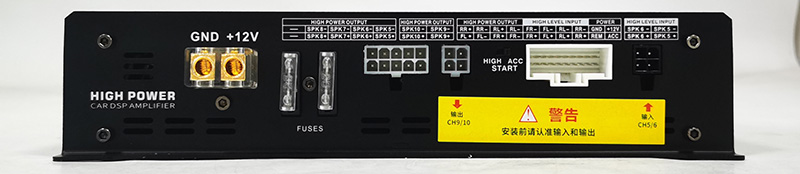

It has multiple input methods such as 8 - channel high - level, 2 - channel low - level, OTG, and Bluetooth 5.1. In terms of output, there are 8 - channel high - level / 10 - channel low - level, meeting diverse connection needs.
(2) Intelligent Tuning, Always in Control

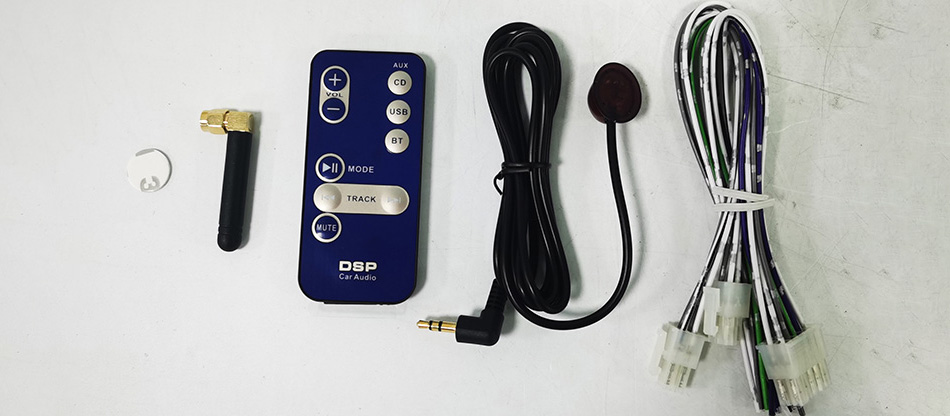

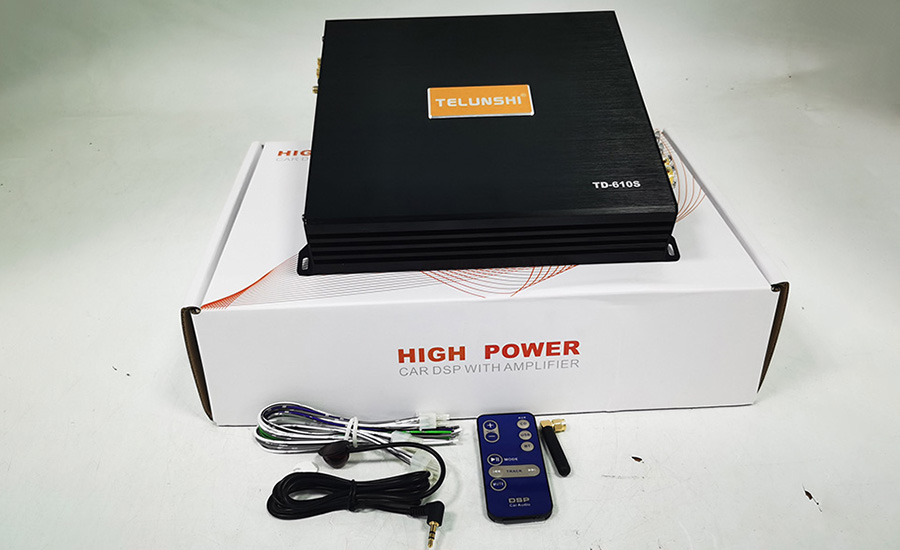

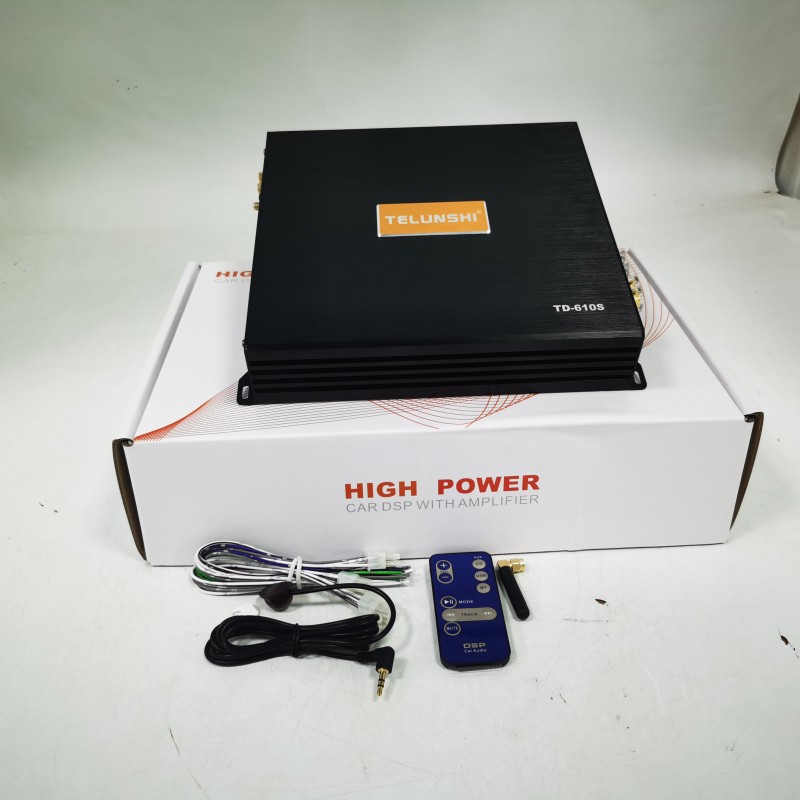

It supports tuning through Windows mixer, Android and iOS apps. The equipped blue remote control is easy to operate, allowing you to easily control the amplifier functions while driving. You can adjust the sound effects at any time according to your preferences and the in - car environment.
(3) Bluetooth 5.1, Free from Constraints
The Bluetooth 5.1 technology features stable connection and fast transmission, enabling high - quality audio transmission and allowing you to play music freely.
(4) Flexible Startup, Suitable for Various Vehicle Models
It supports ACC / high - level startup and can perfectly cooperate with various vehicle models.
Choose the TD - 610 PRO car amplifier DSP and start a high - quality in - car music life.
0102030405060708091011
Product Parameter
| Model number | TD-610 PRO |
| Passage | 10 |
| EQ | 31EQ |
| Type of power amplifier | AB |
| Peak Power | 4x50W + 4x120W |
| Rated Power | 4X25W + 4x60W |
| Impedance | 2Ω - 4Ω |
| Decoding processing chip | ADI1452 +TI PCM3168 |
| Operating Voltage | DC 10-15V 14.4V（10.5V-16V） |
| Tuning Method | Windows console/Android APP/ Apple APP |
| Input Mode | 8-channel high level / 2-channel low level /OTG/ Bluetooth 5.1/ Fiber/coaxial/digital broadcast |
| Output Mode | 8 channels high /10 channels low |
| Frequency Response Range | 20Hz-20KHZ |
| SNR | 98dB |
| Bluetooth | > Bluetooth 5.0 |
| Startup Mode | ACC/ High |

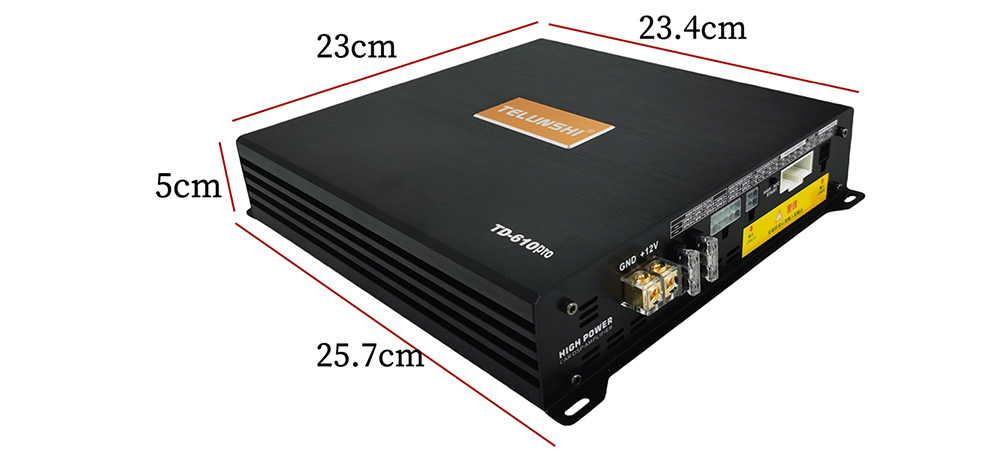

| DSP Size | 23.4cm*23cm*5cm (25.7 to the length of the fixed foot) |
| DSP Bare Weight | 2.98kg |
| Product + Color box size | 38.8cm*26.6cm*9.8cm |
| Color Box Weight | 3.53kg |
| Blue Remote Control | 8.7*4*0.8cm |
